MD PACKAGING SOLUTIONS

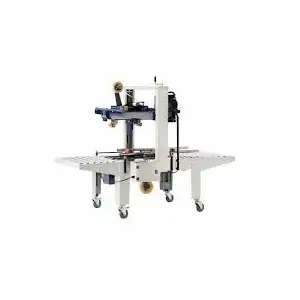

Automatic/Random Carton Sealing Machine - MDP FJ 2

MDP FJ 2

MDP FJ 2

The MDP FJ 2 is a fully automatic carton sealing machine. This machine can be hooked to an assembly line and it can function unmanned. It has options to automatically adjust for different carton width and height, requires little to no human intervention and is fully capable to fold and seal carton boxes on an automated assembly line. The top and side belt drives continuously move the packages ahead on the conveyor line. It is widely used to seal household electric apparatus, foodstuff, daily merchandise, and medici
Tab panes

Special Features:

  • Automatic adjustment for different carton width & height.
  • Top & side belt drive.
  • Automatically convey and seal carton top & bottom simultaneously.

Technical Specifications

Feature Details
Power Supply 1P 110V/220V 50Hz/60Hz 400W, AC Motor
Machine Dimensions L 1154 mm x W 1000 mm x H (table height + 840 mm)
Machine Weight 240 kg
Table Height 530mm~750mm (adjustable)
Convey Speed 19M/min
Carton Dimensions L (150 mm), W (120-480 mm), H (120-450 mm)
Adhesive Tape Spec 48~72mm
Adhesive Tape Material Kraft paper, or BOPP
Electric Components Motor Taiwan Lusona
Air Pressure 5 kg/cm²
Make PackRight
