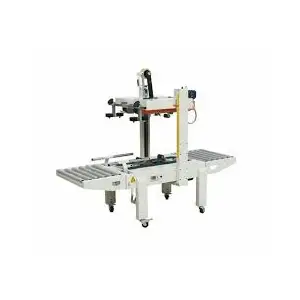

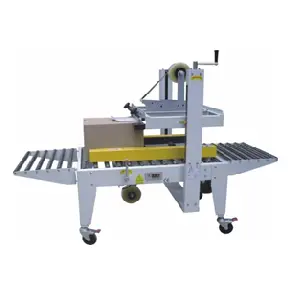

Semi-Automatic Top And Bottom Carton Sealing Machine - MDP FJ 1D

MDP FJ 1D

MDP FJ 1D

The MDP FJ 1D is an automatic carton box sealing machine. It can package cartons, cases with plastic and wood packages. It has a feature to adjust for different carton widths and heights, the top and side belt drives move the package forward through the machine while the operator folds the flaps and pushes the carton to the belt area. Moving forward, the taping head seals the top and bottom of the carton box. This machine is used for sealing in all industries e.g. beverage, chemical, commodity, food, medical.

Special Features:

Technical Specifications

Feature Details
Power Supply 1P 110V/220V 50Hz/60Hz 400W
Machine Dimensions L 970 mm x W 890 mm x H (table height + 750 mm)
Machine Weight 190 Kg
Table Height 530 mm ~ 750 mm (adjustable)
Convey Speed 19M/min
Carton Dimensions L 150~ mm, W 180 mm~600 mm, H 120~480 mm
Adhesive Tape Spec 48~72 mm
Adhesive Tape Material Kraft paper or BOPP
Electric Components Motor Taiwan Luson
Make PackRight
